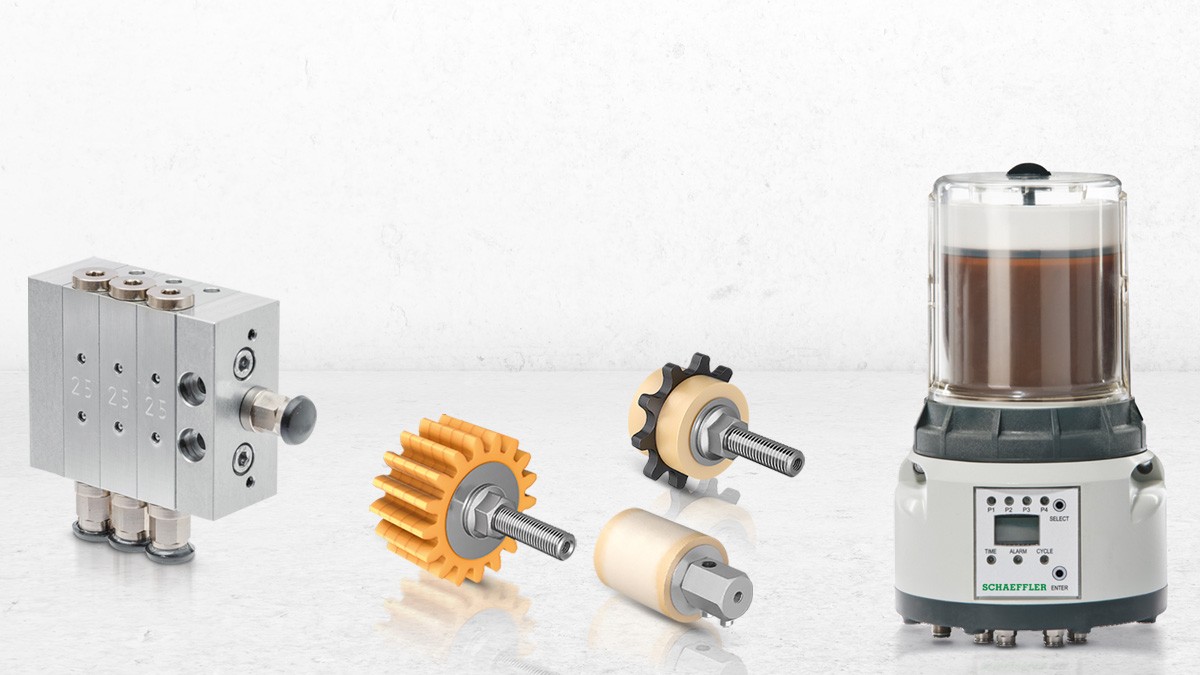

Lubrication devices

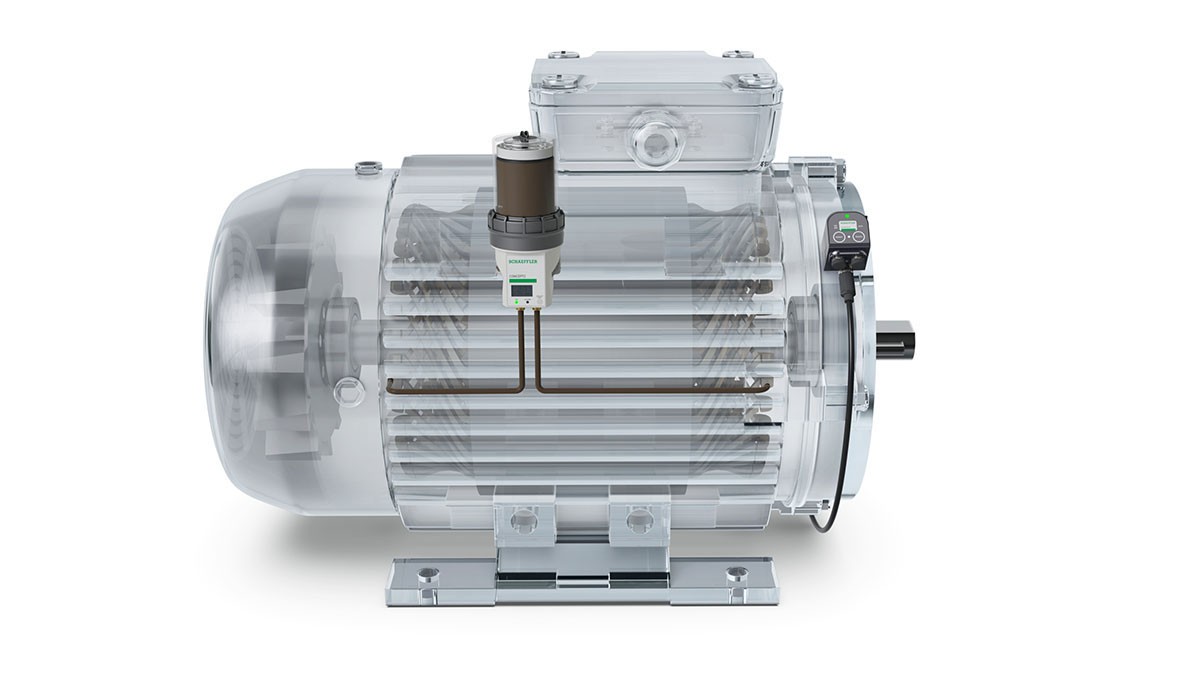

Rolling bearings are automatically supplied with the correct quantity of lubricant by lubricators or lubrication systems. The avoids the most frequent occurrence of rolling bearing failure: insufficient or incorrect lubrication. Approximately 90% of all bearings are lubricated with grease. Relubrication with the correct quantity of grease at the appropriate intervals provides a significant increase in the life of the rolling bearings.

To the medias product catalog

Furher publications

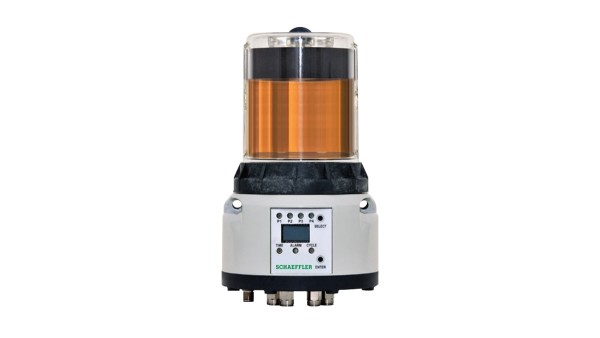

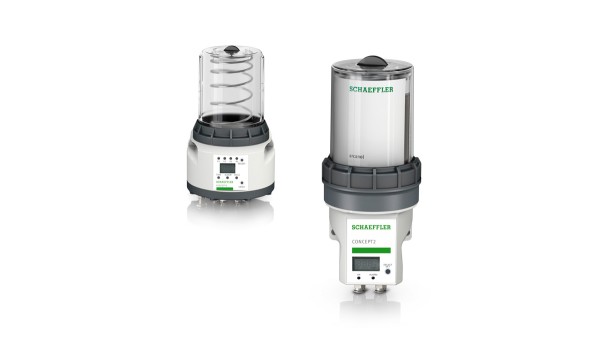

Automatic Relubrication System Concept8

Automatic Relubrication System Concept8

This single and multi-point lubrication system provides a high level of variability. It has two, three or four pump bodies that can be individually controlled, depending on the design. Every pump body has two outlets so that up to eight lubrication points can be flexibly supplied with the required lubricant quantity at the correct lubrication interval using just one lubrication system. The CONCEPT8 lubrication system is suited to many different applications. Variants for linear systems or the use of oils as a lubricant are also available. Lubrication units (LC units) supply lubricant to the equipment. LC units are available in the size 800 cm3. The lubrication system is externally powered by a 24 V DC power supply. The device can be coupled to the machine. If the power supply of the machine and lubrication system are coupled, the machine is always re-lubricated in relation to its operation time.

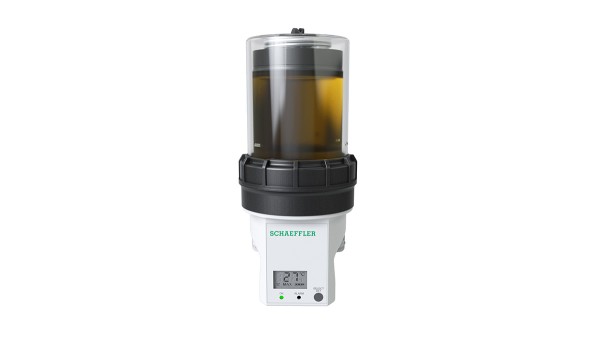

Automatic Lubricator Concept2

Automatic Lubricator Concept2

This lubricator has a very compact design. It has two pump bodies that can be individually controlled, depending on the design. This means it can supply one or two lubrication points with lubricant. LC units are available in the size 250 cm3 and filled with grease or oil. The lubricator is supplied with power either from a battery or via a power supply unit. It can work independently or can be optionally controlled by an external control system.

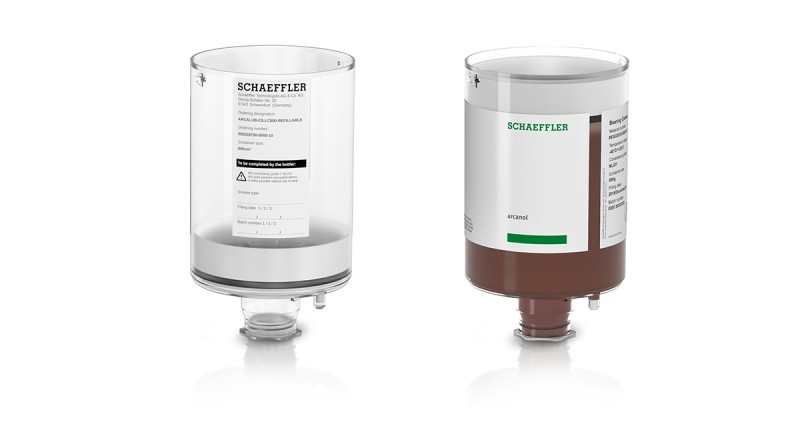

CONCEPT replacement cartridges

CONCEPT replacement cartridges for all types of grease

The grease cartridges for our CONCEPT-series lubricators are now available as refillable empty cartridges. This means that in addition to using lubricating greases from our Arcanol range, CONCEPT devices can now also be operated with greases from third-party manufacturers. The cartridges can be refilled up to three times and thus help you save up to 50 percent of costs while also being kinder to the environment.

Do it yourself – Refilling cartridges yourself is really easy

Filling the cartridges is very simple. All you need is a grease gun and a suitable adapter for the refillable CONCEPT2 and CONCEPT 8 cartridges. This is compatible with all commonly available grease guns/barrel pumps. After filling, the cartridge is ready for use and can be installed on the CONCEPT lubricator. Each cartridge can be refilled up to three times.
